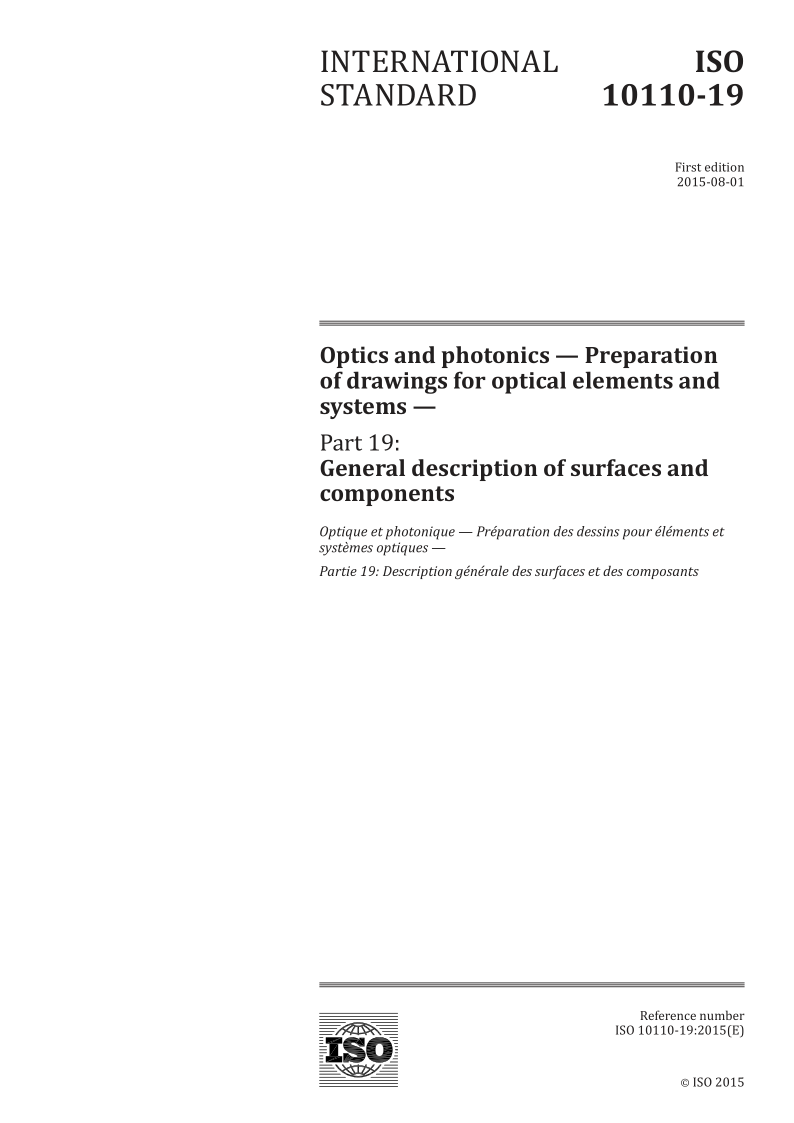

（ISO 10110-19-2015），英文名为Optics and photonics -- Preparation of drawings for optical elements and systems -- Part 19: General description of surfaces and components。
它（ISO 10110-19-2015）是在2015-08-01发布，在2015-08-01开始实施。
ISO 10110-19:2015 specifies the presentation of design and functional requirements for optical elements and systems in technical drawings used for manufacture and inspection. ISO 10110-19:2015 provides a general method of describing surfaces and components. This part of ISO 10110 applies to continuous and discontinuous surfaces. It does not apply to diffractive surfaces, Fresnel surfaces, ophthalmic glasses, and micro-optical surfaces. ISO 10110-19:2015 applies to any general surface or component, even including spherical or rotationally symmetric surfaces if it is necessary, i.e. when NURBS, splines, point clouds, etc. are used. ISO 10110-19:2015 does not specify the method by which compliance with the specifications is to be tested.
本标准文件共有18页。
ISO 10110-19-2015 Optics and photonics -- Preparation of drawings for optical elements and systems -- Part 19_ Gen.pdf
(879.33 KB)
|
